Paintball HPA carbon fiber cylinder

 Tip: Click on the picture to zoom in.

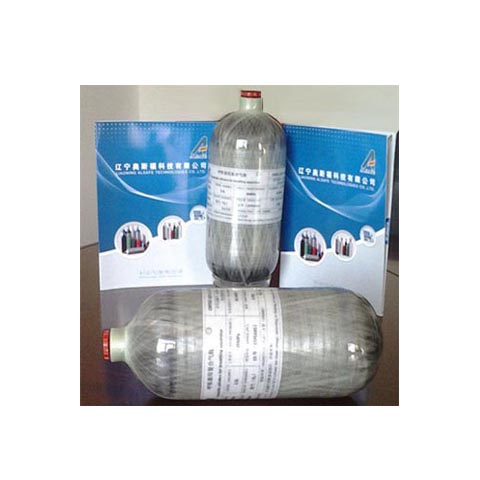

2L HPA carbon fiber cylinder

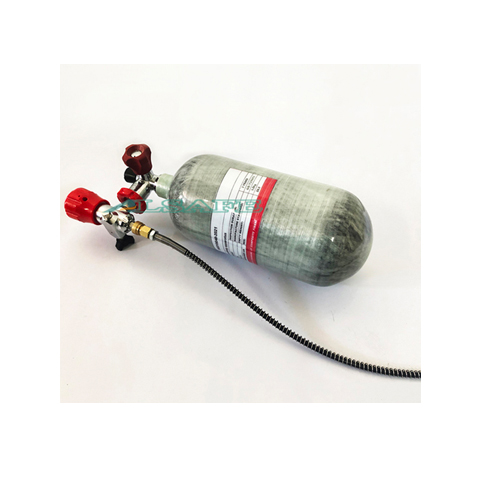

2L HPA carbon with fillstation

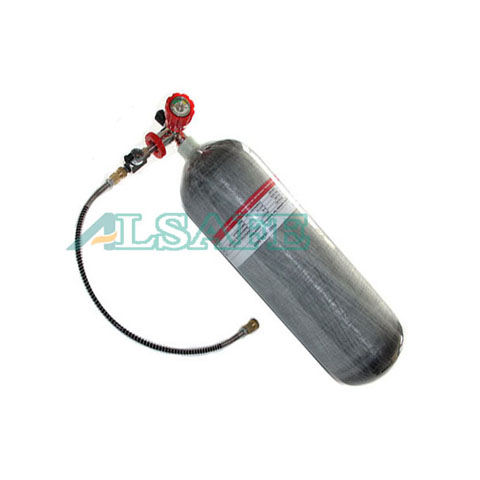

6.8L HPA carbon cylinder with fillstation

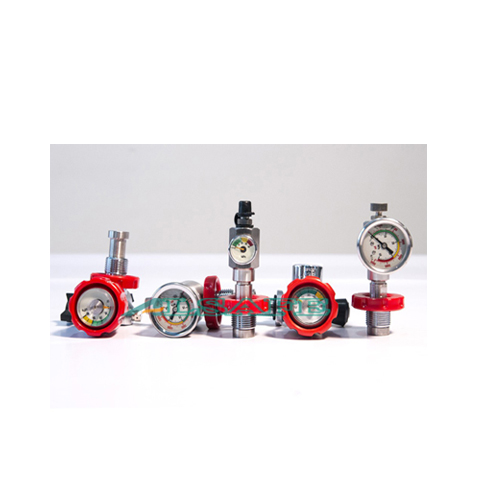

Fill station

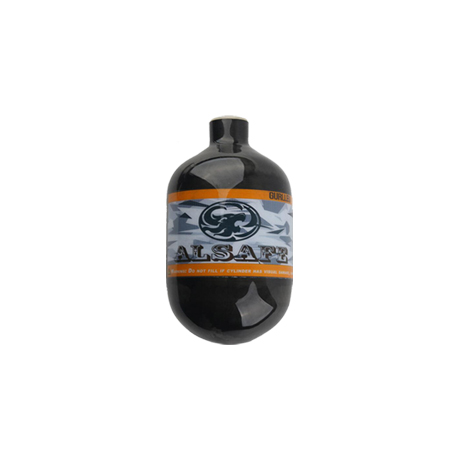

480cc PCP cylinder tank
Ultra strength carbon fiber composite tanks, range from 0.22L to 20L water capacity.
Service pressure 4500psi / 300bar. Adopted for paintball and pcp game. No valve.
Surface treatment including smooth finish and matt finish.

Extremely light weight under high pressure.
Durable design. Smart appearance.




No                    Data
   Type                            		 Outer
Diameter		 Water
Volume		 Length Weight Working pressure
(mm) (litre) (mm) (kg) (psi) (bar)
1 CRPIII-50-0.22-30-T 54 0.22 194 0.34 4500 300
2 CRPIII-50-0.30-30-T 54 0.3 251 0.46 4500 300
3 CRPIII-50-0.30-30-T 54 0.37 295 0.52 4500 300
4 CRPIII-55-0.35-30-T 61.5 0.35 228 0.48 4500 300
5 CRPIII-55-0.36-30-T 61.5 0.36 228 0.48 4500 300
6 CRPIII-55-0.42-30-T 61.5 0.42 259 0.5 4500 300
7 CRPIII-55-0.45-30-T 61.5 0.45 275 0.55 4500 300
　 CRPIII-58-0.48-30-T 62.5 0.48 270 0.45 4500 300
8 CRPIII-55-0.50-30-T 61.5 0.5 300 0.6 4500 300
　 CRPIII-58-0.58-30-T 62.5 0.48 315 0.55 4500 300
9 CRPIII-69-0.60-30-T 78 0.6 253 0.84 4500 300
10 CRPIII-69-0.80-30-T 78 0.8 318 1.02 4500 300
11 CRPIII-78-1.1-30-T 86.5 1.1 311 1.06 4500 300
12 CRPIII-106-1.1-30-T 113 1.1 220 1.02 4500 300
13 CRPIII-106-3.0-30-T 115 3 465 2.18 4500 300
14 CRPIII-106-4.5-30-T 115 4.5 633 3.14 4500 300
15 CRPIII-120-2.4-30-T 129 2.4 301 1.75 4500 300
16 CRPIII-120-2.5-30-T 129 2.5 310 1.8 4500 300
17 CRPIII-120-2.4-20-T 127 2.4 300 1.58 2900 200
18 CRPIII-120-2.5-20-T 127 2.5 309 1.6 2900 200
19 CRPIII-124-2.7-30-T 132 2.7 310 1.7 4500 300
20 CRPIII-145-6.8-30-T 158 6.8 537 4.1 4500 300
21 CRPIII-161-9.0-30-T 172 9 575 5.2 4500 300
22 CRPIII-192-12.0-30-T 210 12 555 6.5 4500 300
23 CRPIII-192-20.0-30-T 210 20 850 9 4500 300
